SyllableLM: Learning Coarse Semantic Units for Speech Language Models


  • Audio와 같은 continuous data에 대한 tokenization은 fixed size convolution이나 discrete clustering에 의존하므로 data의 semantic structure와 align 되지 않음
  • SyllableLM
    • Pre-trained encoder loss의 correlation을 analyze 하여 noisy boundary를 추출
    • Distillation technique을 통해 model representation을 iteratively improving
  • 논문 (ICLR 2025) : Paper Link

1. Introduction

  • Spoken language에 대한 language model은 semantically meaningful speech를 output 하는데 어려움이 있음
    • AudioLM, TWIST와 같은 기존의 Speech Language Model (SpeechLM)은 Transformer Decoder Language Model을 주로 활용함
      1. 특히 SpeechLM은 HuBERT, W2V-BERT와 같은 Self-Supervised Learning (SSL)-based encoder가 output 하는 discrete token을 기반으로 동작함
      2. BUT, 기존의 SSL tokenization은 phonetic information을 주로 capture하고 초당 25-50 token의 high temporal resolution을 가짐
        - 결과적으로 많은 token 수로 인해 training, inference speed가 저하됨
    • 한편으로 SpeechLM의 경우, syllable에 해당하는 temporal resolution을 가진 high-quality speech token이 더 적합할 수 있음

-> 그래서 syllable-like speech token을 추출하는 SyllableLM을 제안



  • SyllableLM
    • Pre-trained SSL model에서 다양한 masking span에 대한 loss를 analyze하여, unannotated speech에 대한 noisy syllable-like segmentation을 reveal하는 LossPred를 도입
    • LossPred syllable-like segmentation에서 bootstrapping을 통해 SSL model의 feature space를 sharpen하는 SylBoost를 구성
    • Quantized SylBoost unit을 tokenization으로 SpeechLM에 해당하는 SyllableLM을 training

< Overall of Paper >

  • Semantic information을 preserve하면서 speech representation을 coarser syllable-like unit으로 merge 하는 self-supervised learning model
  • 결과적으로 기존보다 뛰어난 성능을 달성

2. Learning Self-Supervised, Syllable-like Representations from Raw Speech

  • 논문은 low-bitrate speech unit을 추출하기 위해 bootstrapping process를 도입함

- LossPred: Extracting Syllable-like Segmentation from Relations in HuBERT's Loss

  • LossPred는 pretrained HuBERT에서 phone이 아닌 syllable, word-level unit boundary를 automatically extract 하는 것을 목표로 함
    • 이는 유사한 loss function을 사용하는 WavLM, Wav2Vec 2.0과 같은 SSL에도 적용될 수 있음
      - 특히 해당 speech SSL model은 모두 input token을 randomly masking 하고 unmasked input에 따라 masked input을 predict 하는 Masked Language Modeling (MLM) training objective를 활용함
    • 여기서 LossPred는 entire word에 대한 input token이 masked token으로 replace되었을 때, HuBERT model loss가 해당 timestep에서 relatively high 할 것을 expect 함
      1. 특히 HuBERT는 missing span을 predict 하기 위해 word identity와 underlying acoustic을 jointly predict 해야 함
        - BUT, word의 latter portion만 mask out 되는 경우, word prefix가 주어졌을 때 해당 masked region을 infilling 하는 것이 훨씬 쉬움
      2. 결과적으로 contiguous mask를 token span에 걸쳐 iteratively shift 하여 loss를 비교해 보면, masked semantic unit (word, syllable 등)에 해당하는 span이 strong decrease 하게 됨
        - 이는 mask shift를 통해 word의 beginning/end가 partially reveal 되기 때문
    • LossPred는 student, teacher model에 해당하는 2개의 frozen off-the-shelf HuBERT를 사용함
      1. Student model은 teacher model의 $L$ layer에서 quantized representation을 predict 하도록 optimize 되고, teacher model은 기존의 pretrained model을 활용함
      2. Input waveform $W$가 주어지면, $W$를 teacher model에 전달하여 teacher label을 추출하고 $k$-means를 통해 $L$ layer에서의 representation을 quantize 함
        - 이때 teacher label은 timestep $T$에 대해 $Y_{\{1...T\}}$와 같이 주어짐
      3. HuBERT pretraining과 마찬가지로 논문은 student model에 $W$의 corrputed version을 제공하고, selected timestep에서 student CNN feature extraction output을 mask embedding으로 replace 함
        - 이를 통해 얻어지는 student CNN feature는 masked out timestep $M=\{t_{1},...,t_{m}\}$에 대해 $X_{\{1...T\}}^{M}$과 같이 주어짐
      4. 이후 pretext task를 따라 student는 $X^{M}$ condition 하에서 masked timestep $Y_{t},t\in M$의 teacher label을 predict 하고 Cross-Entropy loss를 통해 evaluate 됨:
        (Eq. 1) $\mathcal{L}_{HuBERT}:=-\log p(Y_{t}|X^{M})$
    • Loss prediction matrix를 $C$라고 하면, 해당 matrix는 mask 할 $s$ timestep의 contiguous sliding window를 따라 move 하면서 student model loss를 look up 함
      1. 즉, $C$는 loss의 raw probability를 modeling 하고, 이때 column은 predict 할 timestep, row는 closest unmaksed token을 나타냄:
        (Eq. 2) $C_{r,c}\in\mathbb{R}_{+}^{T\times T}=\left\{\begin{matrix}
        p(Y_{c}|X^{M})|M=\{r+1,r+2,...,r+s\}\cap[1,T], & \text{if}\,\,r<c,|r-c|\leq\left\lfloor\frac{s}{2}\right\rfloor \\
        p(Y_{c}|X^{M})|M=\{r-1,r-2,...,r-s\}\cap[1,T], & \text{if}\,\,r>c,|r-c|\leq\left\lfloor\frac{s}{2}\right\rfloor \\
        0, & \text{otherwise} \\
        \end{matrix}\right.$
      2. 한편으로 논문은 $C$의 upper/lower triangle을 separately calculate 하고, 이를 위해 first half의 mask span에 대한 loss가 mask 이후의 information과 uncorrelate 되어 있다고 가정함
        - 그러면 upper triangle에서 각 entry $C_{r,c}$는 row $r$, column $c$의 $p(Y_{c}|X^{M})$에 해당하므로 $X^{M}$에서 mask span이 time $r$ 이후부터 start 함을 의미함
        - 반대로 lower triangle에서 $C_{r,c}$는 time $r$ 직전에 mask span이 end 하는 경우의 $p(Y_{c}|X^{M})$에 해당함
      3. 여기서 논문은 대부분의 spoken word를 masking 할 수 있는 long enough duration인 1s에 해당하는 span size $s=50$을 사용함
        - Upper triangle은 mask span의 first 25 timestep을 사용하고 lower triangle은 last 25 timestep을 사용하여 calculate 됨
    • 결과적으로 $C$에서 boundary $B=\{b_{1}=1<b_{2}<...<b_{k+1}=T+1\}$을 가지는 $k$ semantic region을 추출하기 위해, $C$를 input feature-similarity matrix로 취급하고 min-cut algorithm을 적용함:
      (Eq. 3) $ B:=\underset{ \{b_{1}=1<b_{2}...<b_{k+1}=T+1\} }{\arg\max}\sum_{t=1}^{k}\frac{\sum_{i,j=b_{t}}^{b_{t+1}-1}C_{i,j}}{\sum_{i=b_{t}}^{b_{t+1}-1}\sum_{j=1}^{T}(C_{i,j}+C_{j,i})- \sum_{i,j=b_{t}}^{b_{t+1}-1}C_{i,j}}$
      - 이때 utterance length에 비례하도록 $k$를 choice 하여 boundary의 sample rate를 control 할 수 있음
    • LossPred에 의해 추출된 semantic unit은 syllable-like 하지만, 각 sliding window location에 대해 one forward pass를 사용하므로 expensive 함
      1. 이를 위해 3s의 gap으로 multiple masked span을 simultaneously extract 함
      2. Arbitrarily-sized audio에서 $C$를 calculate 하기 위해서는 student model에 대해 200 forward pass가 필요함
        - BUT, SylBoost training을 initialize 하는데 LossPred는 한 번만 수행되므로 semantic unit extraction speed에는 영향을 주지 않음

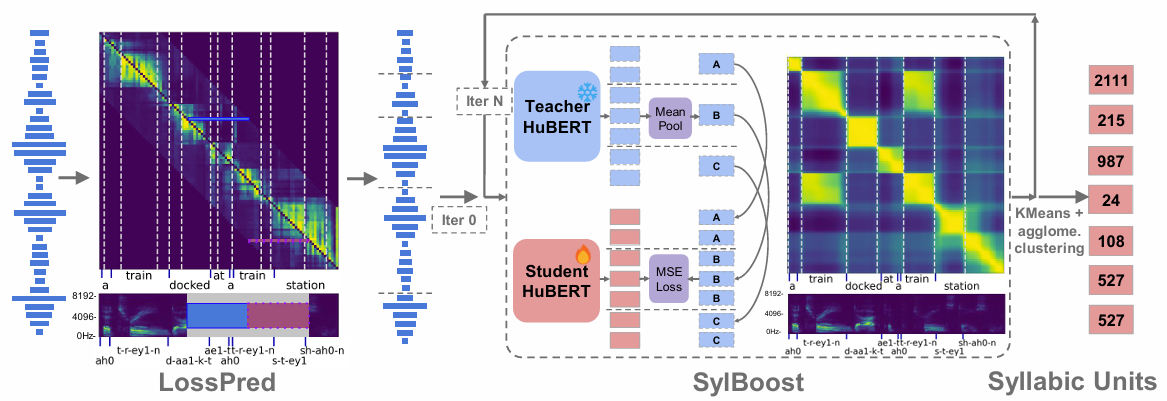

Overview

- SylBoost: Bootstrapping Pseudo-Syllabic Units with Iterative Distillation

  • LossPred에 의해 predict 된 initial boundary를 기반으로 noisy-student-teacher-learning paradigm을 활용하여 semantic representation을 추출함
    • 이때 논문은 input student model의 feature space에서 syllabic organization을 sharpen 하는 것을 목표로 함
      - SylBoost student, teacher model을 initialize 하기 위해 pre-trained HuBERT, Data2Vec을 채택함
    • SylBoost procedure는:
      1. 먼저 hypothesized speech segment boundary set $B=\{b_{1}=1<b_{2}<...<b_{k+1}=T+1\}$에 대해, 두 boundary 사이의 모든 temporal token을 disjoint group $G_{i}=\{t|b_{i}\leq t<b_{i+1}\}$로 grouping 함
      2. $H_{t}$를 $t\in G_{H}$를 포함하는 group의 index라고 할 때, 논문은 syllabic correlation을 따라 select 된 layer $L$의 feature를 modeling 하기 위해 (Eq. 4)의 SylBoost loss를 적용함
      3. 이를 통해 student feature $X_{\{1...T\}}^{(L)}$과 teacher feature $Y_{\{1...T\}}^{(L)}$을 얻음
    • Loss는 각 timestep에서 student feature $X_{t}^{(L)}$과 해당 timestep group 내의 teacher feature 간의 Mean Squared Error로 얻어짐:
      (Eq. 4) $ \mathcal{L}_{SylBoost}:=\frac{1}{T}\sum_{t=1}^{T}\left(X_{t}^{(L)}-\frac{1}{|G_{H_{i}}|} \sum_{s\in G_{H_{i}}}Y_{s}^{(L)}\right)^{2}$
    • Training 이후 SylBoost는 sharpened latent feature $X_{t}^{(L)}$을 가진 student model을 얻음

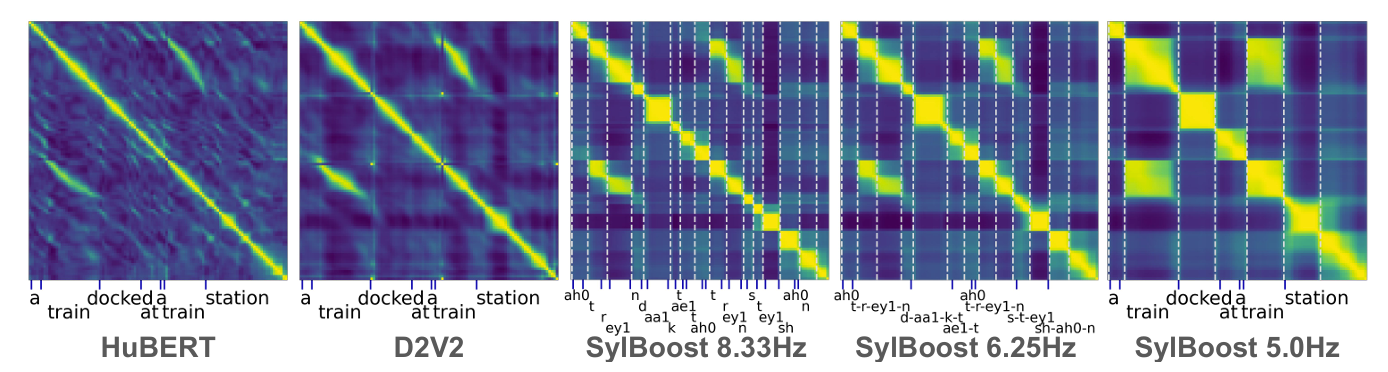

      1. 여기서 논문은 아래 그림과 같이 element $A_{i,j}$가 feature $X_{i}^{(L)},X_{j}^{(L)}$ 간의 $L2$ distance를 나타내는 pairwise frame distance의 matrix $A$를 calculate 함
      2. 이후 cut algorithm을 사용하여 $A$에서 boundary를 추출함
        - 이를 통해 new pseudo-label boundary를 생성할 수 있고, SylBoost를 다시 실행하여 better boundary를 얻을 수 있음
      3. 최종적으로 각 SylBoost boundary group에 대해 $L$ layer에서 feature를 mean pooling 하여 discrete cluster를 추출하고 $k$-means를 적용하여 cluster를 생성함
        - 이후 agglomerative clustering을 통해 desired unit 수로 similar cluster를 merge 함

Boundary Detection에 대한 Controllability

- Efficient Extraction of Unit Boundaries for SylBoost

  • Learned feature representation에서 boundary index를 추출하기 위해 mincut approach를 고려할 수 있음
    • BUT, speech의 경우 해당 approach는 느리고 parallelize 하기 어려우므로 downstream language modeling에 대한 bottleneck이 발생함
    • 따라서 논문은 efficient approach로써, $k+1$ potential boundary가 주어지면 각각의 unit에서 assigned group의 mean까지의 distance 합을 minimize 하는 group을 choice 함:
      (Eq. 5) $ \displaystyle{B:=\underset{\{b_{1}=1<b_{2}...<b_{k+1}=T+1\}}{\arg\min} \sum_{i=1}^{k}\sum_{j=b_{i}}^{b_{i+1}-1}\left( X_{j}^{(L)}-\frac{1}{b_{i+1}-b_{i}}\sum_{l=b_{i}}^{b_{i+1}-1}X_{l}^{(L)}\right)^{2}}$
      - 이때 $G$ token의 maximum group length를 choice 하여 setting을 restirct 할 수 있고, 논문은 token의 1s에 해당하는 $G=50$을 사용함
    • 이를 통해 얻어지는 efficient extraction algorithm은:
      1. Token $t$에서 끝나는 length $g$의 group cost $D_{t, g}$에서 distance array $D\in\mathbb{R}^{T\times G}$를 calculate 한 다음,
      2. Dynamic programming을 통해 해당 distance array에서 minimal interval cover를 solve 함
        - 해당 approach는 $\mathcal{O}(k)$의 data-aware sequential step 내에서 수행됨

3. SyllableLM: Speech Language Modeling on Coarse Units

  • Raw audio modeling은 Audio-to-Unit tokenization, Tokenized unit에 대한 language modeling, Token-to-Waveform decoding의 3단계로 구성됨
    - 이때 unit tokenization은 SylBoost를 통해 수행되고, 나머지는 SyllableLM을 통해 수행됨

- Language Model

  • AudioLM을 따라 input token sequence $x_{1},...,x_{T}$가 주어졌을 때, $p(x_{t}|x_{t-1},...,x_{1})$을 approximate 하는 autoregressive Transformer decoder language model을 채택함
    • 특히 SylBoost의 discrete cluster output에서 training 된 해당 language model을 main SpeechLM으로 사용함
    • 추가적으로 논문은 $\text{<BOS>}$ token을 prepend 함

- Token to Speech Decoding

  • SylBoost token을 audio로 변환하기 위해, 논문은 ELLA-V의 interleaved decoding strategy를 채택하여 TWIST unit을 output 하고 해당 output을 vocoder에 cascading 하여 waveform을 얻음
    • 해당 interleaving strategy는 VALL-E와 같은 text-to-speech model과 달리 high-difficulty setting에서 우수한 성능을 보이므로 논문은 이를 resynthesis에 활용함
    • 이때 training 중에 unit을 interleave 하기 위해서는:
      1. 먼저 각 SylBoost unit과 TWIST unit의 start-timestep을 ascending order로 sort 함
        - 여기서 noisy SylBoost boundary를 고려하여 sorting 이전에 각 SylBoost unit의 start-time에서 2개의 TWIST unit에 해당하는 0.08s를 subtract 함
      2. 이후 syllable의 phone의 drop-in replacement로 사용하고 greedy decoding을 적용함
        - 이를 통해 얻어지는 model을 Interleaved-Vocoder-LM이라고 함
    • 최종적으로 sample에 대한 continuation을 생성하기 위해서는:
      1. Sample에서 syllable-unit과 TWIST unit을 추출하고, SpeechLM에서 syllable-unit continuation을 sampling 함
      2. Sample TWIST unit, sample syllable-unit, continued syllable-unit으로 condition 된 interleaved model을 통해 TWIST unit을 continuing 함
      3. 최종적으로 vocoder를 통해 speech로 resynthesizing 함

4. Experiments

- Settings

  • Dataset : LibriSpeech, LibriLight
  • Comparisons
    - Speech Unit : SD-HuBERT, Feat-Sim
    - Language Model : AudioLM, TWIST, GSLM, Moshi

- Results

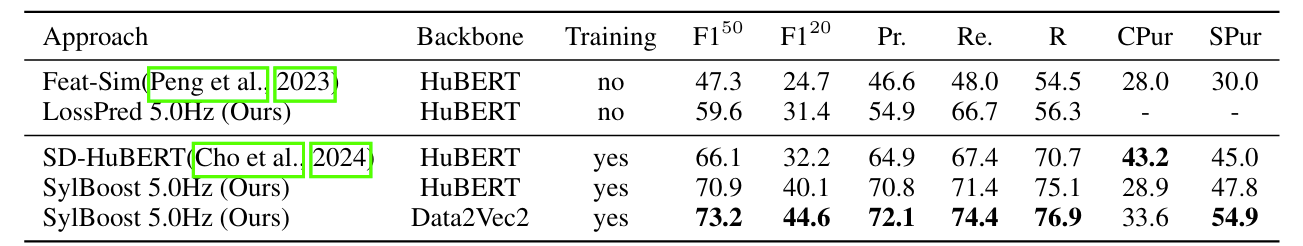

  • Syllable boundary detection 측면에서 SylBoost가 가장 우수한 성능을 보임

Syllable Boundary Detection

  • LossPred bootstrapping을 적용하는 경우 SylBoost의 성능을 더욱 향상할 수 있음
    • Controllability 측면에서 higher unit rate는 phone과 연관되고, lower unit rate는 syllable, word와 연관됨
    • 추가적으로 inference speed 측면에서 SylBoost는 기존보다 빠른 RTF를 달성함

(좌) LossPred의 효과 (중) Unit Rate Controllability (우) Real Time Factor (RTF)

  • Unit resynthesis 측면에서 SylBoost는 SD-HuBERT 보다 더 나은 성능을 보임

Unit Resynthesis

  • Spoken Language Modeling

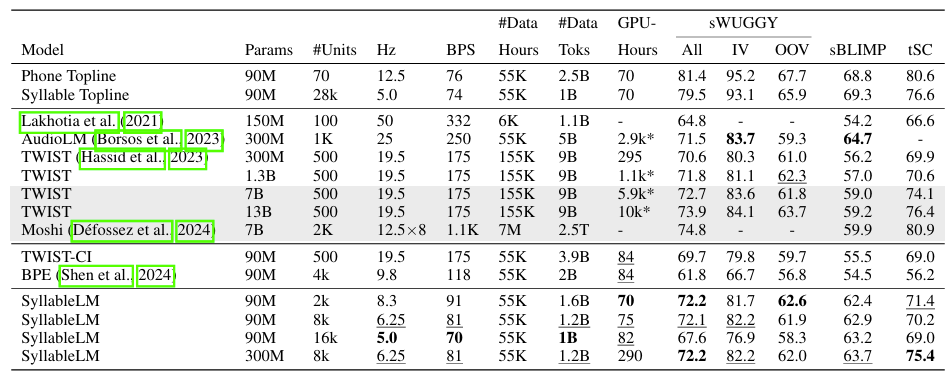

    • SyllableLM은 1.3B parameter의 TWIST, 7B parameter의 Moshi 보다 더 나은 성능을 달성함

Speech Language Model 비교

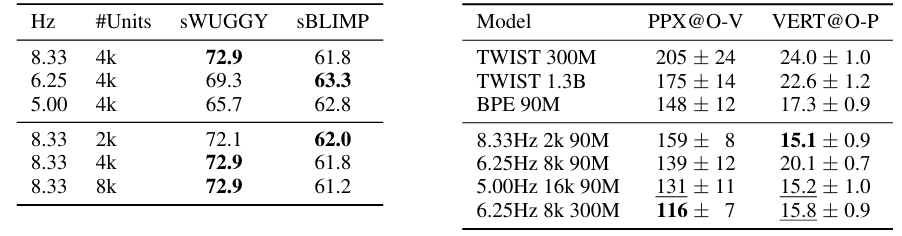

  • Unit rate, unit frequency를 변경하는 경우에도 우수한 sWUGGY, sBLIMP를 달성함
    • 추가적으로 end-to-end continuation 측면에서도 뛰어난 PPX, VERT 결과를 보임

(좌) Unit Rate 별 성능 (우) End-to-End Continuation 성능
